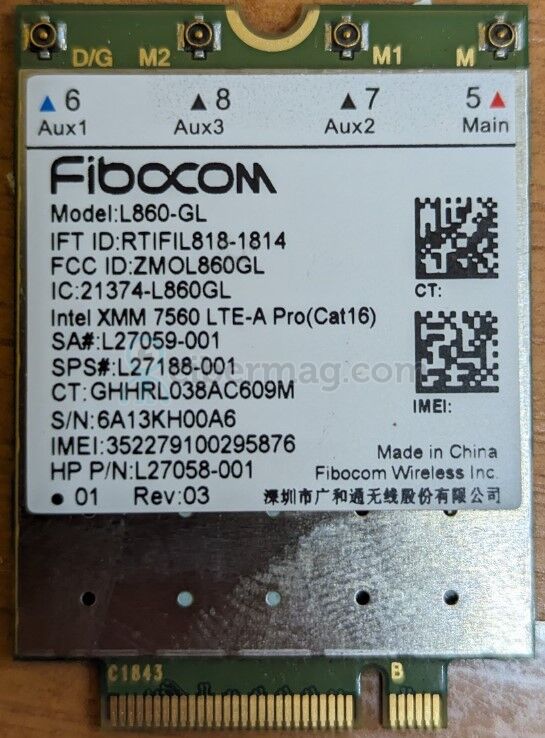

Fibocom L860-GL 4G Module Wlan Card SPS#L27188-001 for HP Elitebook

Fibocom L860-GL 4G Module Wlan Card LTE-A Pro cat16 1Gbps SPS#L27188-001 wireless Card WWAN for HP Elitebook X360 830 840 850

Характеристики:

Chipset: For Intel XMM7560

LTE FDD：LTE FDD

Band 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66

LTE TDD: B38/39/40/41/42

UMTS: Band 1, 2, 4, 5, 8

Form factor: M.2 package

Dimensions: 30.0*42.0*2.3 mm

DL 5CA on 4 bands, DL 256QAM support * DL-MIMO: 2*2, 4*2, 4*4 * DL 4x4 MIMO: Band 1,2,3,4,7,30,40,41NB, 66 * LAA(Band 46)

Integrated GNSS

eSIM interface support

AT Command Set: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands

TX Power

FDD& TDD LTE: 23dBm - WCDMA: 23.5dBm

RX Sensitivity: FDD& TDD LTE: -98dBm~102dBm

Совместимы з моделями HP : HP Elitebook X360 830 840 850

Windows 10
